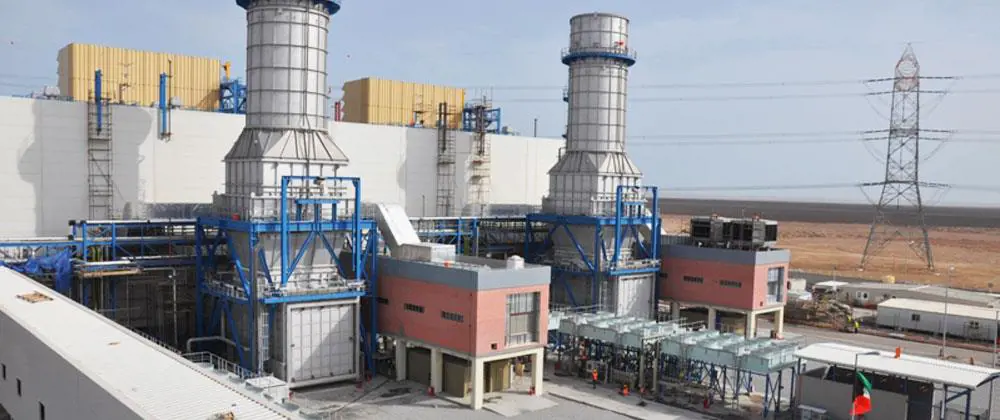

750 MW Sabiya - 1 CCPP Project (500 MW SCPP+ 250 MW conversion), Kuwait



  • Name of Project : 750 MW Sabiya - 1 CCPP Project (500 MW SCPP+ 250 MW conversion), Kuwait

    Owner : Ministry of Electricity & Water (MEW)

    Client : Alghanim International General Trading & Contracting Co. WLL, Kuwait

    Capacity : 750 MW

    L&T-S&L’s scope : Basic & Detail engineering services including On Site Support for EPC of the entire plant

    Configuration : Combined cycle plant of

    • Two (2) nos.  Siemens 4000F Gas Turbines
    • Two(2) nos. unfired HRSG
    • One (1) GE STF30 Steam turbine generator

    Key Technical Features :

    • Two GTGs of capacity 261.85 MW
    • One Steam Turbine Generator of Capacity 250MW
    • Sea water cooling tower with intake & outfall arrangement
    • Closed cooling water system including emergency cooling system
    • Feed water system including LP economizer circulation system
    • Condensate system
    • Conventional Chlorination Plant (3 x 50%)
    • Compressed Air System (3 x 50%)
    • Chemical Storage, Forwarding & Dosing System
    • Waste Water Neutralization Plant
    • Plant Nitrogen Purging & Preservation System
    • Fire Protection system
    • BMS controlled HVAC Plant including smoke management
    • Design with wet compression feature

    Fuel : Natural Gas & Fuel Oil

    Year of commissioning : 2018
